Section 2.0 Intake System & Starter (Part 1)

Prev Next
Fullscreen Share

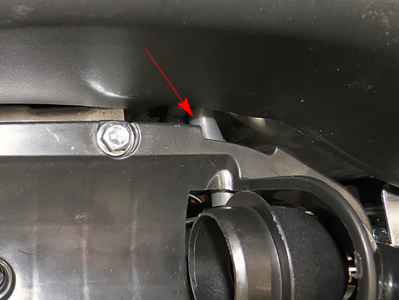

Remove Air Filter/Cover, air filter, and 10mm bolt under the cover.

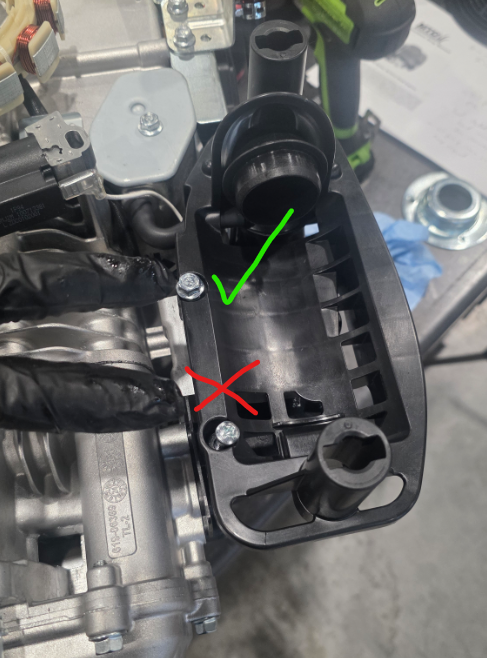

Don't worry about the Phillips screw as we aren't opening the carburetor in this lesson.

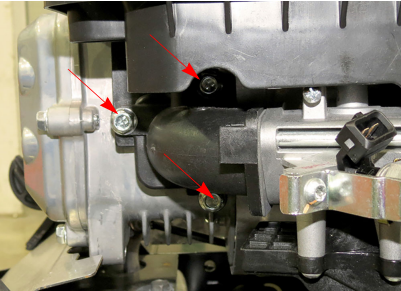

Remove Intake Manifold (3x 10mm bolts).

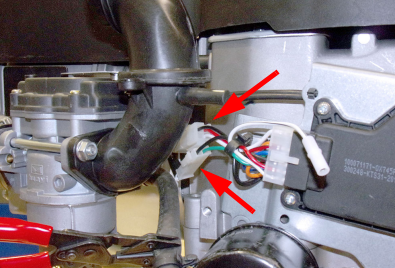

Disconnect Hoses/Wiring: Vent Hose, Anti-After-Fire Solenoid.

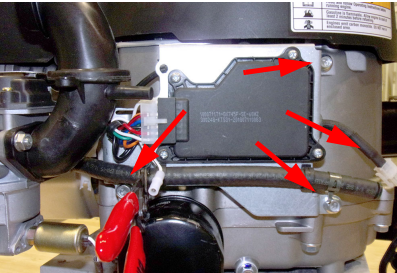

If Equipped: Disconnect Intellipower Controller and remove the 3 10mm bolts holding it to the engine.
