Tiny Scan

Here is the summary transcript for the video "Tiny Scan" regarding the TS-140 diagnostic code reader.

Video Summary Transcript

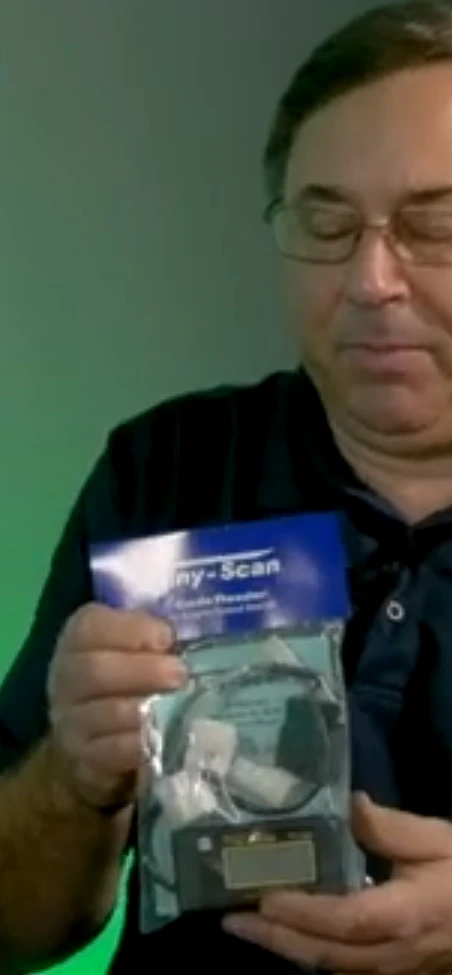

• Introduction to Tiny Scan: The Tiny Scan (Part Number TS-140) is a specialized device used for reading and clearing engine trouble codes. It is designed to provide an automotive-style code reading experience for small engines, especially where manufacturers do not provide onboard indicator lights.

• Manufacturer Compatibility: Right out of the package, the tool is compatible with MTD products using Delphi ECUs. It also includes specific adapters to plug into Briggs & Stratton and Kohler engines.

• Connecting the Tool: To use the device, simply attach the correct adapter, locate the diagnostic port on the engine, and plug in the Tiny Scan tool.

• Reading Codes: Once connected, turn the ignition key to the "on" position. The screen will display "DC" followed by a number (e.g., DC 0 means zero diagnostic codes).

• Identifying Specific Faults: If codes are present (e.g., DC 2), you press the select button in the top left corner to cycle through the specific numerical trouble codes (such as 0332 or 0352).

• Clearing Codes: After the mechanical repair is completed, the tool provides an option to "Clear Codes." You must push and hold the button to confirm. The device then re-reads the system to ensure the code count has returned to zero.

• Limitations vs. Benefits: The presenter emphasizes that this is a code reader only; it does not provide live data displays or real-time readouts. However, it is preferred over "blink codes" because it eliminates the risk of miscounting flashes and human error.
