Kohler Front Drive Shaft

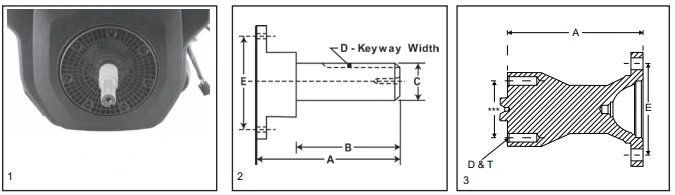

Below is a calculator that uses the dimensions from the Kohler Accessories Catalog page 18
Kohler Front Drives Calculator & Filter
| Part No. | A | B | C | D | E | Hardware Required | D and T | Models |
|---|
Required Hardware
- CH11-15: (2) X-22-2-S Washer, (2) M10x30mm-1.5 socket head screw purchased locally
- CH18-26/730-750 and ECH630-749: (4) M-839025-S Screw (Included in -755 kits)
- LH640-775: (4) M-839025-S Screw
- CH940-1000: (4) M-839035-S Screw
SOME FRONT DRIVES REQUIRE:
LH640-775: Also order 66 096 18-S Flywheel Cover w/ hole for front drive or Instruction Sheet TT-5081 for a template to cut the hole in your existing flywheel cover.
All other models: Also order Grass Screen w/hole for front drive per catalog table. If changing from plastic screen to metal screen, also order blower housing. Contact customer service at factory for correct blower housing.
Kohler Front Drives Calculator & Filter
| Part No. | A | B | C | D | E | Hardware Required | D and T | Models |
|---|
Required Hardware
- CH11-15: (2) X-22-2-S Washer, (2) M10x30mm-1.5 socket head screw purchased locally
- CH18-26/730-750 and ECH630-749: (4) M-839025-S Screw (Included in -755 kits)
- LH640-775: (4) M-839025-S Screw
- CH940-1000: (4) M-839035-S Screw
SOME FRONT DRIVES REQUIRE:
LH640-775: Also order 66 096 18-S Flywheel Cover w/ hole for front drive or Instruction Sheet TT-5081 for a template to cut the hole in your existing flywheel cover.
All other models: Also order Grass Screen w/hole for front drive per catalog table. If changing from plastic screen to metal screen, also order blower housing. Contact customer service at factory for correct blower housing.
